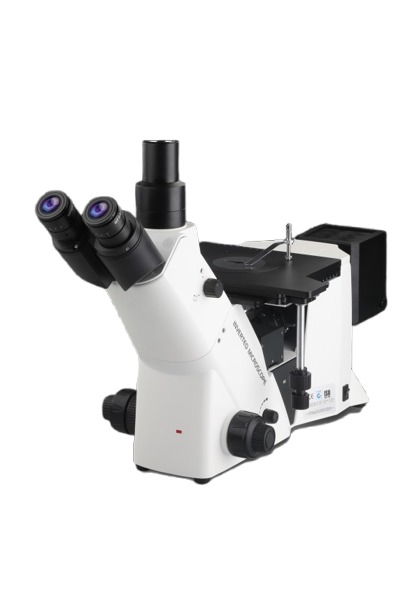

INVERTED METALLURGICAL MICROSCOPE
MODEL MI

Trinocular Observation Head

1. Siedentopf observation head inclined at 45°.
2. Diopter adjustment ring on ocular tube (±5).
3. Interpupillary distance adjustable from 53 mm to 75 mm.
4. Focusable vertical tube for digital microphotography.

Eyepiece (Anti-fungus)

1. Wide field 10X (paired), Field of View: 22 mm.

Objectives (Infinity Corrected)

1. M Long Working Distance Plan 5X
2. M Long Working Distance Plan 10X
3. M Long Working Distance Plan 20X
4. M Long Working Distance Plan 50X
5. M Long Working Distance Plan 100X (S.L.) Dry

Illuminator

1. Epi-Koehler illumination system.
2. Aperture iris diaphragm and field iris diaphragm.
3. LED lamp with adjustable brightness.
4. Filter wheel in light path with blue, green, and yellow filters.

Mechanical Body

1. Co-axial focusing system with large knobs, pre-focusing lever & tension adjustment ring.
2. Quintuple nosepiece on ball bearing mechanism.
3. Mechanical stage size 210 mm × 180 mm with moving range 50 mm × 50 mm.
4. Mechanical stage with low-positioned co-axial controls on ball bearing guide ways.
5. Upper port with phototube for micro photography.

Standard Accessories

1. LED bulb
2. Operating manual
3. Dust cover
4. Guarantee card
5. Styrofoam molded pack
