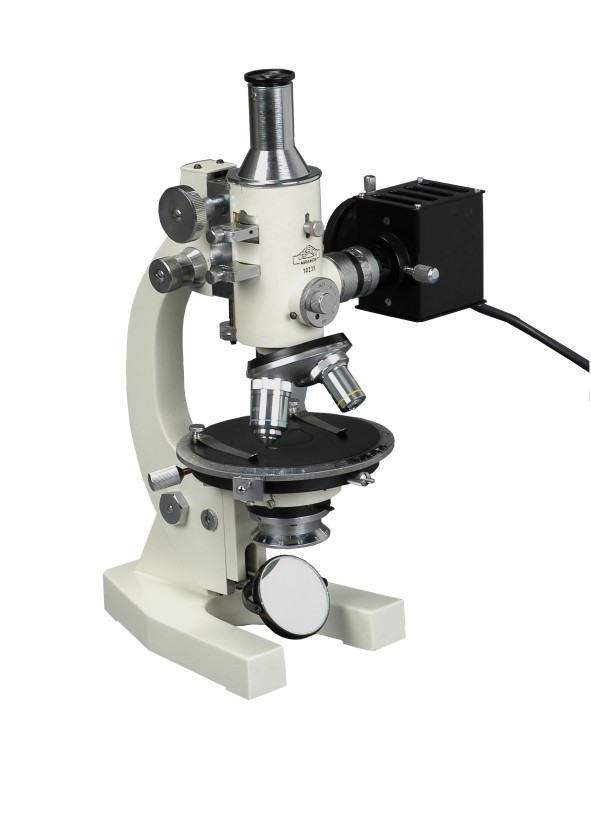

Student ORE Microscope

TRANSMITTED AND REFLECTED POLARISING (ORE) MICROSCOPE
CENSICO MAKE MODEL ORE-O

1. Designed for transmitted ray as well as incident ray microscopy in polarised light.
2. Coarse focusing adjustment effected by rack and pinion; fine focusing adjustment provided from both sides.
3. Ball-bearing type self-centered triple revolving nosepiece.
4. Circular centering rotatable stage with degree calibration.
5. Two-lens aplanatic Abbe condenser.
6. Rotatable polariser mount having 15° calibration.
7. Analyser provided in a slide which can be swung in and out.
8. The polarising filters are imported and of high grade and are guaranteed for five years for good performance.
9. The microscope is equipped with a Bertrand lens, which can be swung in and out.
10. The microscope is equipped with an incident ray illuminator provided with imported West German iris diaphragm, built-in incident ray polariser, low-voltage bulb and variable transformer.
11. OPTICS: Three achromatic objectives (5x, 10x and 40x), self-centered and strain-free, along with two Huyghenian eyepieces: 10x (Cross Hair) and 15x.

---

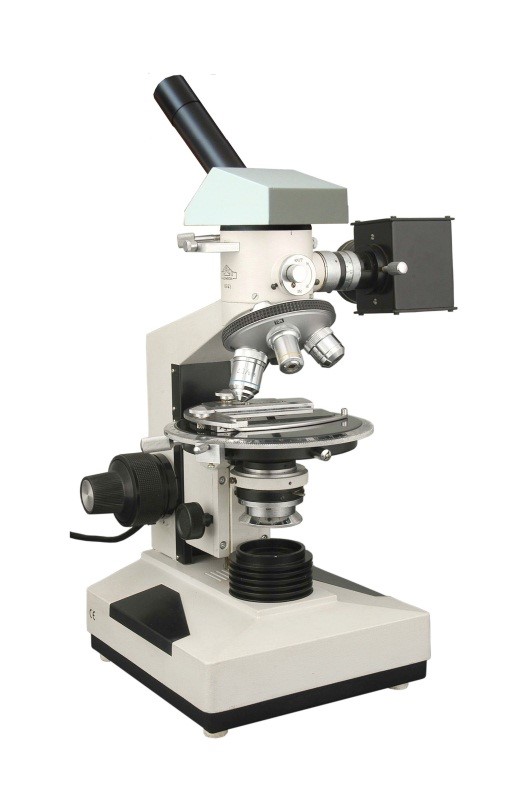

MONOCULAR INCLINED TRANSMITTED & REFLECTED LIGHT POLARISING (ORE) MICROSCOPE WITH COAXIAL COARSE & FINE MOTION
CENSICO MAKE MODEL ORE-MN-O-CXL

1. An inclined monocular microscope for visualising opaque objects and thin sections of geological specimens in transmitted and reflected polarised light.
2. Coaxial coarse and fine focusing adjustment; coarse focusing effected by rack and pinion and fine focusing adjustment provided from both sides.
3. Ball-bearing type self-centered quadruple revolving nosepiece.
4. Circular centering rotatable stage with degree calibration.
5. Analyser provided in a slide which can be swung in and out.
6. The polarising filters are imported and of high grade and are guaranteed for five years for good performance.
7. Microscope equipped with an incident ray illuminator provided with imported West German iris diaphragm, built-in incident ray polariser, low-voltage 6V/20W halogen lamp and variable transformer.
8. Transmitted light illuminator with 6V/20W halogen lamp built into the base for thin-section polarised light microscopy.
9. OPTICS: Three own-make objectives (self-centered, strain-free and anti-reflex coated) – 5x, 10x and 40x; supplied with two eyepieces: one Widefield WF 10x (Cross Hair Scale eyepiece) and one Huyghenian 15x eyepiece.

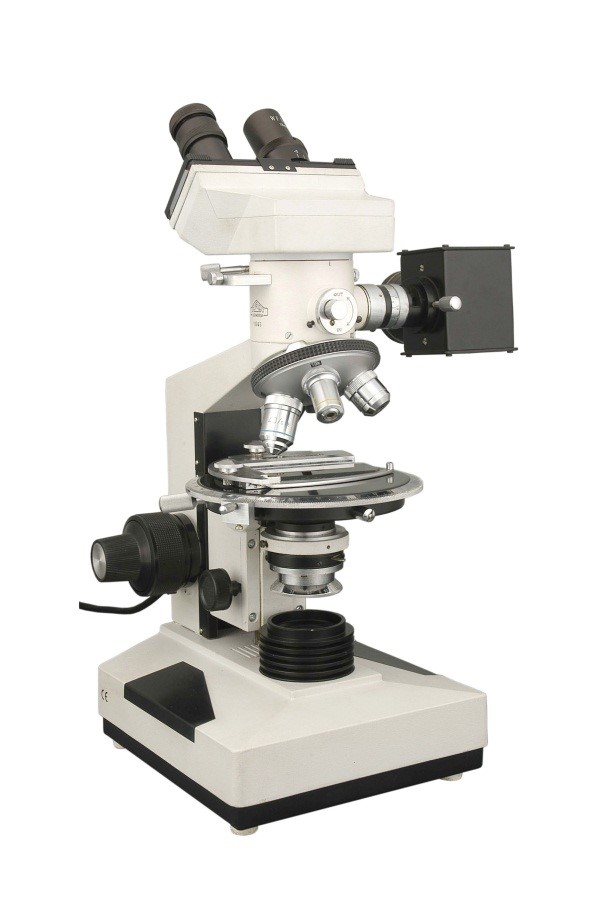

Binocular ORE Microscope Microscope

BINOCULAR TRANSMITTED & REFLECTED LIGHT POLARISING (ORE) MICROSCOPE WITH COAXIAL COARSE AND FINE MOTION
CENSICO MAKE MODEL ORE-BN-O-CXL

1. A binocular microscope for visualising opaque objects in polarised light as well as thin sections, used for petrographic, crystallographic, geological and mineralogical studies.
2. Coaxial coarse and fine focusing adjustment effected from both sides, with graduated drum; each division equals 2/1000 mm.
3. Ball-bearing type self-centered quadruple revolving nosepiece.
4. Circular centering rotatable stage with degree calibration.
5. Two-lens aplanatic Abbe condenser with rotatable polariser mount.
6. Analyser provided in a slide which can be swung in and out of the microscope tube.
7. Polarising filters are imported and of high grade and are guaranteed for five years for good performance.
8. Equipped with an incident ray illuminator provided with imported West German iris diaphragm and built-in incident ray polariser.
9. The beam splitter for incident light illumination is provided with a switch-over knob for transmitted light illumination.
10. A slot measuring 12 mm × 4 mm is provided in the tube at 45° to the polariser axis for compensators.
11. The microscope has a built-in Halogen Lamp (6V–20W) illuminator in the base.
12. OPTICS: Three strain-free objectives (5x, 10x and 40x) and two paired eyepieces: one pair Widefield WF10x eyepieces (including one Cross Hair Scale eyepiece) and one pair Widefield WF15x eyepieces.
13. The microscope is provided with a depolarizer for elimination of pseudo pleochroism colours.

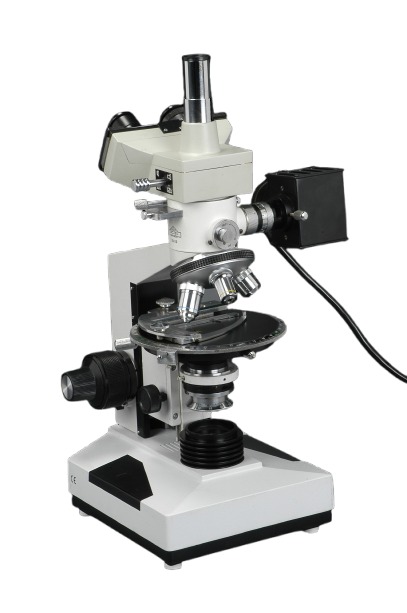

Trinocular ORE Microscope

TRINOCULAR TRANSMITTED & REFLECTED LIGHT POLARISING (ORE) MICROSCOPE WITH COAXIAL COARSE AND FINE MOTION
CENSICO MAKE MODEL ORE-TN-O-CXL

1. A trinocular microscope for visualising opaque objects in polarised light as well as thin sections, used for petrographic, crystallographic, geological and mineralogical studies.
2. Coaxial coarse and fine focusing adjustment effected from both sides, with graduated drum; each division equals 2/1000 mm.
3. Ball-bearing type self-centered quadruple revolving nosepiece.
4. Circular centering rotatable stage with degree calibration.
5. Two-lens aplanatic Abbe condenser with rotatable polariser mount.
6. Analyser provided in a slide which can be swung in and out of the microscope tube.
7. Polarising filters are imported and of high grade and are guaranteed for five years for good performance.
8. Equipped with an incident ray illuminator provided with imported West German iris diaphragm and built-in incident ray polariser.
9. The beam splitter for incident light illumination is provided with a switch-over knob for transmitted light illumination.
10. A slot measuring 12 mm × 4 mm is provided in the tube at 45° to the polariser axis for compensators.
11. The microscope has a built-in Halogen Lamp (6V–20W) illuminator in the base.
12. OPTICS: Three strain-free objectives (5x, 10x and 40x) and two paired eyepieces: one pair Widefield WF10x eyepieces (including one Cross Hair Scale eyepiece) and one pair Widefield WF15x eyepieces.
13. The microscope is provided with a depolarizer for elimination of pseudo pleochroism colours.

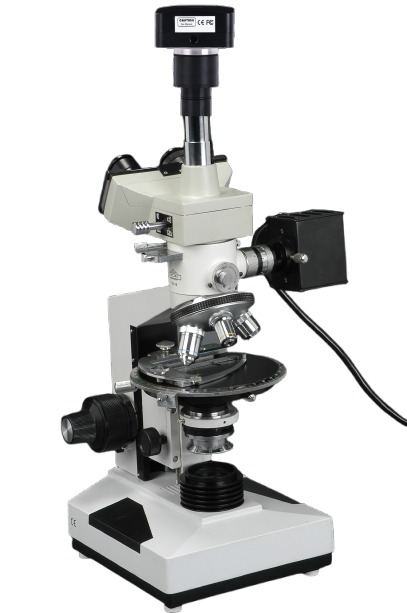

Trinocular ORE Microscope with camera

TRINOCULAR TRANSMITTED & REFLECTED LIGHT POLARISING (ORE) MICROSCOPE WITH COAXIAL COARSE AND FINE MOTION
CENSICO MAKE MODEL ORE-TN-O-CXL

1. A trinocular microscope for visualising opaque objects in polarised light as well as thin sections, used for petrographic, crystallographic, geological and mineralogical studies.
2. Coaxial coarse and fine focusing adjustment effected from both sides, with graduated drum; each division equals 2/1000 mm.
3. Ball-bearing type self-centered quadruple revolving nosepiece.
4. Circular centering rotatable stage with degree calibration.
5. Two-lens aplanatic Abbe condenser with rotatable polariser mount.
6. Analyser provided in a slide which can be swung in and out of the microscope tube.
7. Polarising filters are imported and of high grade and are guaranteed for five years for good performance.
8. Equipped with an incident ray illuminator provided with imported West German iris diaphragm and built-in incident ray polariser.
9. The beam splitter for incident light illumination is provided with a switch-over knob for transmitted light illumination.
10. A slot measuring 12 mm × 4 mm is provided in the tube at 45° to the polariser axis for compensators.
11. The microscope has a built-in Halogen Lamp (6V–20W) illuminator in the base.
12. OPTICS: Three strain-free objectives (5x, 10x and 40x) and two paired eyepieces: one pair Widefield WF10x eyepieces (including one Cross Hair Scale eyepiece) and one pair Widefield WF15x eyepieces.
13. The microscope is provided with a depolarizer for elimination of pseudo pleochroism colours.

Accessories for ORE Microscope

Model	Specification
Compensators	Mica Quarter Wave & Gypsum Red First Order Plates, imported make, mounted in CENSICO metallic mounts.
Quartz Wedge	First to Fourth Order Quartz Wedge, imported make, mounted in CENSICO metallic mounts, size 12 mm × 4 mm.
Objectives	5x centerable objective for CENSICO Polarising Microscopes. 10x centerable objective for CENSICO Polarising Microscopes. 40x centerable objective for CENSICO Polarising Microscopes. 100x Oil Immersion Objective, Hertel & Reuss, Germany.
Bulbs	Imported Halogen Lamp, 6V / 20W. Imported Halogen Lamp, 12V / 50W. Imported Halogen Lamp, 6V / 20W. Japanese Hosobuchi Make Bulb, 6V × 30/33W, two-pin type with ribbon filament.
Eyepieces	One pair of imported Widefield Eyepieces WF10x. One pair of imported Widefield Eyepieces WF15x. Measuring Eyepiece 10x (Filar Micrometer Eyepiece), imported.
Stage & Eyepiece Micrometers	Stage Micrometer, 1 mm × 100 divisions, Japan make. Micrometer Disc Scale, 10 mm × 100 divisions. Graph Micrometer Disc, Japan make, available in 100 or 400 square divisions.
Mechanical Stage for Polarising Microscopes	Mechanical stage for CENSICO make Polarising Binocular and Trinocular Microscopes.

X

Ore Microscope

For study of Ores and ceramic materials , both in Transmitted Polarized and Reflected (Epi-Illumination) Polarized Light. Provided with two polarizers and one analyzer, Strain free objectives 5x, 10x & 40x corrected for incident light and Two paired Eyepieces WF10x (One Cross hair) and H15x, Circular centering type rotatable stage graduated in 360 degree, vernier reading to 1/10 degrees. Built-in 6V 20W halogen lamp Illuminator with variable transformer built in the base.

Epi Illuminator provided with 6V 20W halogen lamp & iris diaphragm. Optional attachable mechanical stage and Accessory plates Mica quarter wave and Red Ist order, Quartz Wedge. It is available in four models that are Student Ore Microscope, Binocular Ore Microscope, Trinocular Ore Microscope and Trinocular Ore With Digital Camera. We are amongst the leading manufacturers and exporters of ore microscopes.
