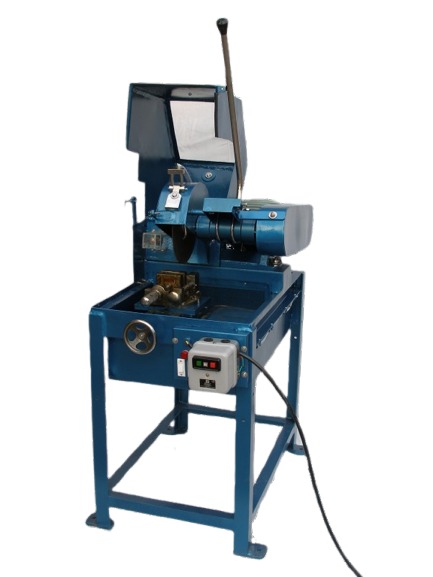

Abrasive Cutter

ABRASIVE CUTTER FOR METALLOGRAPHIC SAMPLES
CENSICO MAKE MODEL CW-I

1. Abrasive Cutter for Metallographic Samples.
2. Manufactured by CENSICO, Model CW-I.
3. Designed for quick and clean cutting of metallurgical specimens.
4. Suitable for cutting specimens from rods, tubes, and other irregular-shaped materials.
5. Can be used for preparing small pieces of rocks and minerals for analysis.
6. Operates using appropriate abrasive cutting wheels.
7. Equipped with a powerful 2 HP motor for efficient cutting performance.
8. Ideal for metallography, mineralogy, geology, and material testing laboratories.

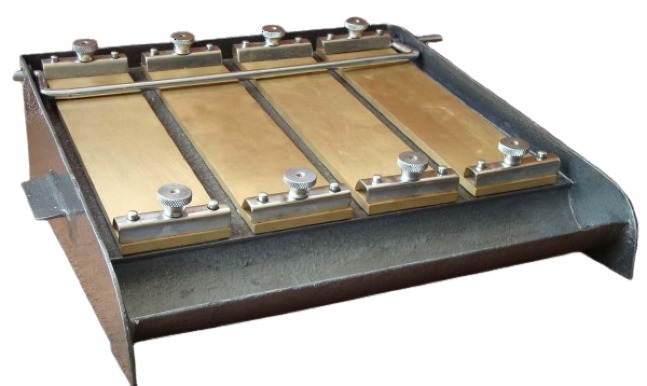

Hand grinder

HAND GRINDER FOR METALLOGRAPHY
CENSICO MAKE MODEL HG-I

1. Hand Grinder for Metallography, CENSICO Make, Model HG-I.
2. Designed to accommodate 4 numbers of 11" × 3" (1/3rd sheet) emery papers of different grades.
3. Emery papers are clamped on a polished plain bronze/brass surface using clamping arrangements on both ends.
4. Ensures the abrasive papers remain flat and tightly secured during grinding and polishing operations.
5. The complete mechanism is mounted in a heavy-gauge sheet metal tray of approximately 16" × 16.5" size.
6. Finished with durable hammertone enamel paint for long-lasting performance.
7. Suitable for wet polishing applications in metallographic sample preparation.
8. Provided with water jets and control valve for continuous water sprinkling during wet polishing.
9. Ideal for metallography laboratories, material testing facilities, and research institutions.

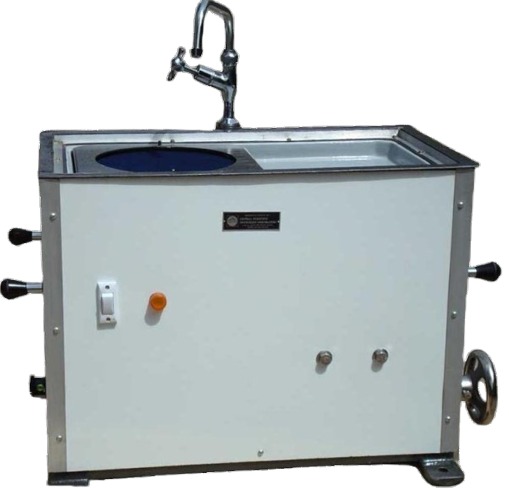

Single Disc Portable Polisher 8"

SINGLE DISC PORTABLE POLISHER FOR METALLOGRAPHIC SAMPLES VARIABLE SPEED
CENSICO MAKE MODEL PMV-P8-I

1. Single Disc Portable Polisher for Metallographic Samples with Variable Speed Control.
2. Designed for grinding and polishing a wide range of metallurgical specimens.
3. Equipped with a motor-driven 8-inch Bronze Disc.
4. Discs are easily replaceable, with various disc options available for different applications.
5. Supplied with an 8-inch bronze disc that push-fits onto a tapered steel spindle.
6. Spindle runs smoothly between two precision ball bearings mounted within the housing.
7. Disc operates inside a fiberglass sink that collects and removes abrasive waste materials.
8. Provided with splash guard and protective covers for safe operation and storage.
9. Features a swan-neck water tap that can be positioned over the disc for controlled water flow during grinding and polishing.
10. The swan-neck tap can also be directed toward the wash basin for cleaning specimens during intermediate examinations.
11. All operating controls are conveniently located on the front panel for ease of use.
12. Operates on 220V AC power supply.
13. Fitted with a 1/4 HP T.E.F.C. (Totally Enclosed Fan Cooled) single-phase motor.
14. Provides continuously variable speed adjustment from 300 RPM to 900 RPM through a circular control wheel.

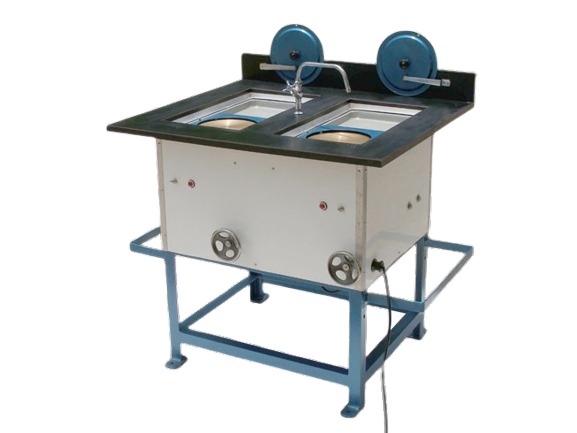

Double Disc Polishing Machine Table type

TWO DISC POLISHING MACHINE FOR METALLOGRAPHIC SAMPLES VARIABLE SPEED TABLE TYPE
CENSICO MAKE MODEL PMV-T8-II

1. Two Disc Polishing Machine for Metallographic Samples with Variable Speed Control.
2. Designed for grinding and polishing a wide variety of metallurgical specimens.
3. Consists of two independent motor-driven 8-inch bronze discs.
4. Suitable for mounting polishing papers or polishing cloths on the discs.
5. Discs are easily replaceable, and different disc types are available for specialized applications.
6. Supplied with two 8-inch bronze discs mounted on tapered steel spindles.
7. Each spindle runs smoothly on precision ball bearings housed within the machine body.
8. Discs operate within fiberglass basins that collect and remove abrasive waste materials.
9. Equipped with splash guards and protective covers for operator safety and equipment protection.
10. Features swan-neck water taps for controlled water flow during grinding and polishing operations.
11. Water taps can also be directed toward the wash basin for cleaning specimens during intermediate examinations.
12. Finished with a durable Formica table top and back ledge.
13. Heavy-duty mild steel body enclosed with glossy panels on all sides.
14. Self-contained table-type design with easy access to internal mechanisms.
15. All controls are conveniently positioned on the front panel for easy operation.
16. Operates with two independent 220V AC, 1/4 HP T.E.F.C. (Totally Enclosed Fan Cooled) single-phase motors mounted on a common M.S. frame.
17. Provides continuously variable speed control from 300 RPM to 900 RPM through a circular control wheel.

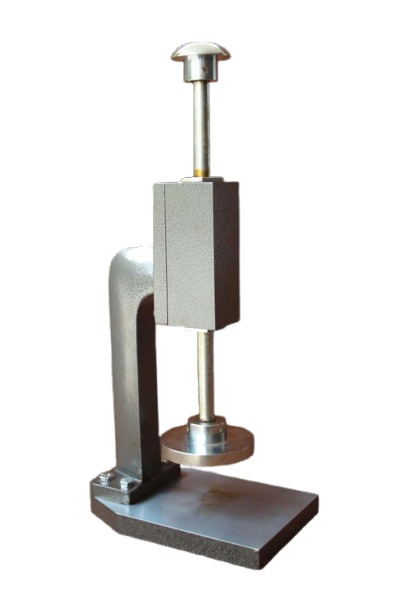

Specimen Leveller

SPECIMEN LEVELLER FOR METALLOGRAPHIC SAMPLES
CENSICO MAKE MODEL SL-I

1. Specimen Leveller for Metallographic Samples.
2. Provides a simple and reliable method for ensuring that the specimen surface is exactly perpendicular to the optical axis of the microscope.
3. Pressure applied on the plunger knob aligns the polished specimen surface parallel to the upper surface of the microscope slide.
4. Specimen is mounted securely on the microscope slide using plasticine.
5. Ensures accurate specimen positioning for metallographic examination and analysis.
6. Supplied with a ground metallic plated base for stability and precision.
7. Features a concealed return spring steel shaft with gun metal bushing.
8. Robust one-piece cast iron (C.I.) frame construction.
9. Finished with durable hammertone coating for long service life.

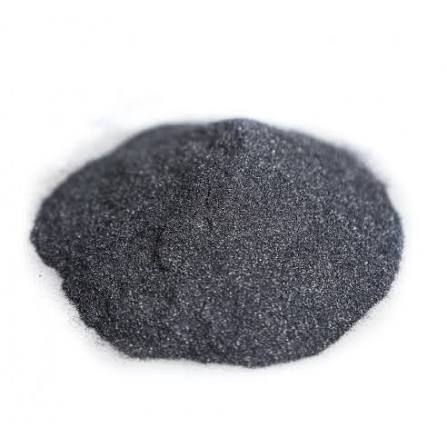

Consumables

METALLOGRAPHIC CONSUMABLES & ACCESSORIES

Product	Specification
Cold Mounting of Sample	Cold Mounting Kit Plastic Powder – 400 gms per set Liquid – 400 gms per set
Emery Polishing Paper Sheet	Emery Polishing Paper Sheet 9" × 11" available in 1/0, 1, 2/0, 3/0, 4/0 or 2000 Grit. Swiss / Imported Make. Pack Size: Set of 4 Sheets.
Polishing Alumina Powder	Polishing Alumina in Powder Form, Indian Make, particle size 2 to 6 microns. Pack Size: 500 gms.
Diamond Paste of Heavy Concentration	Diamond Paste (Super Concentration) supplied in 5 gm Syringe. 0.25 Micron 1.00 Micron 3.00 Micron 6.00 Micron Lubricant: Available separately in 300 cc bottle.
Polishing Cloths	Selvyt Cloth – Recommended for rough and final polishing using polishing alumina, cerium oxide, and chromium oxide. Made from imported cloth. Available Sizes: 10" Circle & 12" Circle. Billiard Cloth – Recommended for polishing iron and steel samples. Available Sizes: 10" Circle & 12" Circle.
Plasticine	Plasticine available in different colours. Pack Size: 200–250 grams per packet.

X

Metallographic Equipments

Metallographic equipments are extensively used for metallographic specimen preparation in metallography. Abrasive Cutter, Hand Grinder, Single Disc Polisher, Two Disc Polisher, Specimen Leveller and various consumables are available for sample preparation. We are one of the leading manufacturer and exporter of metallographic equipments.
