Student ORE Microscope

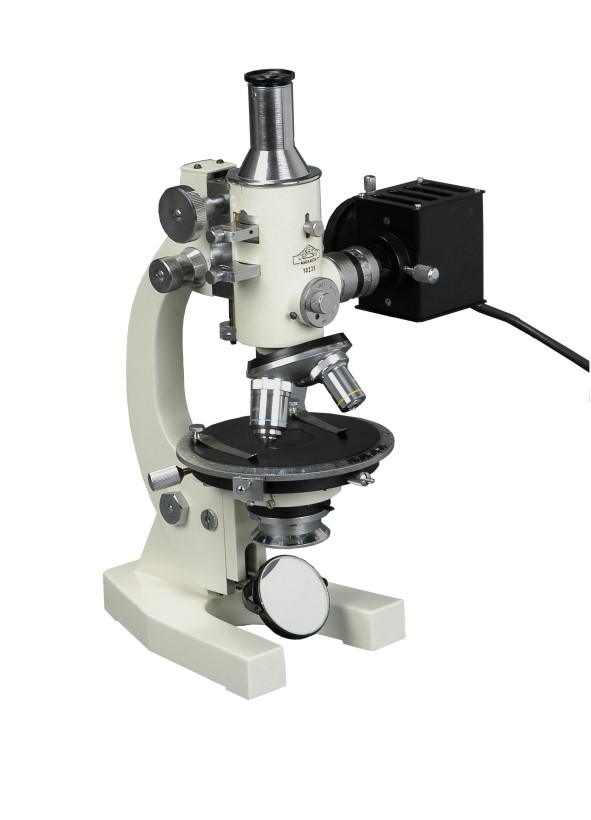

TRANSMITTED AND REFLECTED POLARISING (ORE) MICROSCOPE
'CENSICO' Make – Model ORE-O

1. Designed for transmitted ray as well as incident ray microscopy in polarised light.
2. Coarse focusing adjustment by rack & pinion and fine focusing adjustment from both sides.
3. Ball bearing type self-centered triple revolving nosepiece.
4. Circular centering rotatable stage with degree calibration.
5. Two-lens aplanatic Abbe condenser.
6. Rotatable polariser mount with 15° calibration.
7. Analyser provided in a slide which can be swung in and out.
8. Imported high-grade polarising filters guaranteed for five years of reliable performance.
9. Bertrand lens which can be swung in and out.
10. Incident ray illuminator fitted with imported West German iris diaphragm, built-in incident ray polariser, low-voltage bulb and variable transformer.
11. Optics: Three achromatic self-centered strain-free objectives (5x, 10x & 40x) with two Huyghenian eyepieces (10x cross-hair and 15x).

---

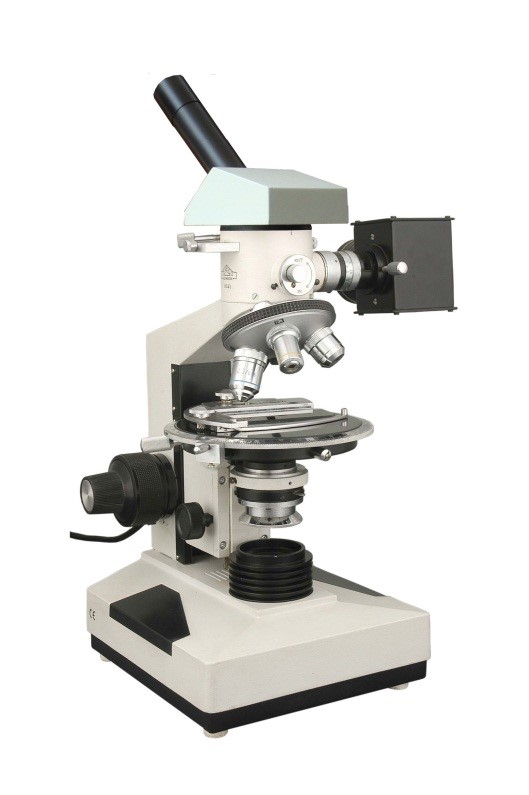

MONOCULAR INCLINED TRANSMITTED & REFLECTED LIGHT POLARISING (ORE) MICROSCOPE WITH COAXIAL COARSE & FINE MOTION
'CENSICO' Make – Model ORE-MN-O-CXL

1. Inclined monocular microscope for viewing opaque objects and thin geological sections in transmitted and reflected polarised light.
2. Coaxial coarse and fine focusing adjustment. Coarse focusing by rack & pinion and fine focusing from both sides.
3. Ball bearing type self-centered quadruple revolving nosepiece.
4. Circular centering rotatable stage with degree calibration.
5. Analyser provided in a slide which can be swung in and out.
6. Imported high-grade polarising filters guaranteed for five years of reliable performance.
7. Incident ray illuminator with imported West German iris diaphragm, built-in incident ray polariser, 6V/20W low-voltage halogen lamp and variable transformer.
8. Transmitted light illuminator with 6V/20W halogen lamp provided in the base for thin section polarised light microscopy.
9. Optics: Three own-make self-centered, strain-free, anti-reflex coated objectives (5x, 10x & 40x) with two eyepieces: one Widefield WF 10x (cross-hair scale) and one Huyghenian 15x.

Binocular ORE Microscope Microscope

BINOCULAR TRANSMITTED & REFLECTED LIGHT POLARISING (ORE) MICROSCOPE WITH COAXIAL COARSE AND FINE MOTION
CENSICO MAKE MODEL ORE-BN-O-CXL

1. A binocular microscope for visualising opaque objects in polarised light as well as thin sections, used for petrographic, crystallographic, geological and mineralogical studies.
2. Coaxial coarse and fine focusing adjustment effected from both sides, with graduated drum; each division equals 2/1000 mm.
3. Ball-bearing type self-centered quadruple revolving nosepiece.
4. Circular centering rotatable stage with degree calibration.
5. Two-lens aplanatic Abbe condenser with rotatable polariser mount.
6. Analyser provided in a slide which can be swung in and out of the microscope tube.
7. Polarising filters are imported and of high grade and are guaranteed for five years for good performance.
8. Equipped with an incident ray illuminator provided with imported West German iris diaphragm and built-in incident ray polariser.
9. The beam splitter for incident light illumination is provided with a switch-over knob for transmitted light illumination.
10. A slot measuring 12 mm × 4 mm is provided in the tube at 45° to the polariser axis for compensators.
11. The microscope has a built-in Halogen Lamp (6V–20W) illuminator in the base.
12. OPTICS: Three strain-free, Self-centered objectives (5x, 10x & 40x) and two paired eyepieces: one pair Widefield WF10x eyepieces (including one Cross Hair Scale eyepiece) and one pair Widefield WF15x eyepieces.
13. The microscope is provided with a depolarizer for elimination of pseudo pleochroism colours.

Trinocular ORE Microscope

TRINOCULAR TRANSMITTED & REFLECTED LIGHT POLARISING (ORE) MICROSCOPE WITH COAXIAL COARSE AND FINE MOTION
CENSICO MAKE MODEL ORE-TN-O-CXL

1. A trinocular microscope for visualising opaque objects in polarised light as well as thin sections, used for petrographic, crystallographic, geological and mineralogical studies.
2. Coaxial coarse and fine focusing adjustment effected from both sides, with graduated drum; each division equals 2/1000 mm.
3. Ball-bearing type self-centered quadruple revolving nosepiece.
4. Circular centering rotatable stage with degree calibration.
5. Two-lens aplanatic Abbe condenser with rotatable polariser mount.
6. Analyser provided in a slide which can be swung in and out of the microscope tube.
7. Polarising filters are imported and of high grade and are guaranteed for five years for good performance.
8. Equipped with an incident ray illuminator provided with imported West German iris diaphragm and built-in incident ray polariser.
9. The beam splitter for incident light illumination is provided with a switch-over knob for transmitted light illumination.
10. A slot measuring 12 mm × 4 mm is provided in the tube at 45° to the polariser axis for compensators.
11. The microscope has a built-in Halogen Lamp (6V–20W) illuminator in the base.
12. OPTICS: Three strain-free, Self-centered objectives (5x, 10x & 40x) and two paired eyepieces: one pair Widefield WF10x eyepieces (including one Cross Hair Scale eyepiece) and one pair Widefield WF15x eyepieces.
13. The microscope is provided with a depolarizer for elimination of pseudo pleochroism colours.

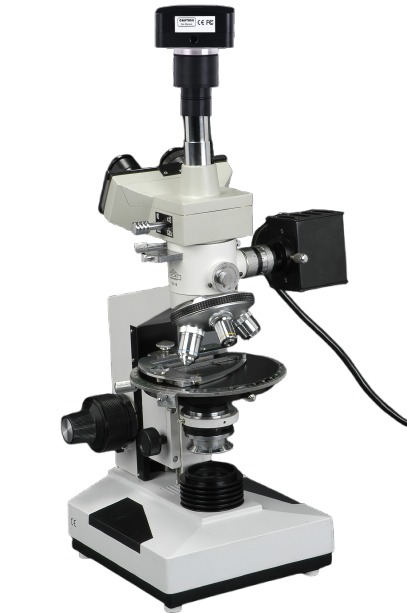

Trinocular ORE Microscope with camera

TRINOCULAR TRANSMITTED & REFLECTED LIGHT POLARISING (ORE) MICROSCOPE WITH COAXIAL COARSE AND FINE MOTION
CENSICO MAKE MODEL ORE-TN-O-CXL-DCAM (WITH DIGITAL CAMERA USB 2/3)

1. A trinocular microscope for visualising opaque objects in polarised light as well as thin sections, used for petrographic, crystallographic, geological and mineralogical studies.
2. Coaxial coarse and fine focusing adjustment effected from both sides, with graduated drum; each division equals 2/1000 mm.
3. Ball-bearing type self-centered quadruple revolving nosepiece.
4. Circular centering rotatable stage with degree calibration.
5. Two-lens aplanatic Abbe condenser with rotatable polariser mount.
6. Analyser provided in a slide which can be swung in and out of the microscope tube.
7. Polarising filters are imported and of high grade and are guaranteed for five years for good performance.
8. Equipped with an incident ray illuminator provided with imported West German iris diaphragm and built-in incident ray polariser.
9. The beam splitter for incident light illumination is provided with a switch-over knob for transmitted light illumination.
10. A slot measuring 12 mm × 4 mm is provided in the tube at 45° to the polariser axis for compensators.
11. The microscope has a built-in Halogen Lamp (6V–20W) illuminator in the base.
12. OPTICS: Three strain-free, Self-centered objectives (5x, 10x & 40x) and two paired eyepieces: one pair Widefield WF10x eyepieces (including one Cross Hair Scale eyepiece) and one pair Widefield WF15x eyepieces.
13. The microscope is provided with a depolarizer for elimination of pseudo pleochroism colours.
14. 5MP / 18MP Digital Camera (USB 2.0 / USB 3.0) complete with reduction lens.

Accessories for Transmitted & Incident Light Polarising Microscope

Model	Specification
Compensators	Mica Quarter Wave & Gypsum Red First Order Plates, imported make mounted in CENSICO metallic mounts.
Quartz Wedge	First to Fourth Order Quartz Wedge, imported make, mounted in CENSICO metallic mounts, size 12 mm × 4 mm.
Objectives	5x centerable objective for CENSICO Polarising Microscopes. 10x centerable objective for CENSICO Polarising Microscopes. 40x centerable objective for CENSICO Polarising Microscopes. 100x Oil Immersion Objective, Hertel & Reuss, Germany.
Bulbs	Imported Halogen Lamp, 6V / 20W. Imported Halogen Lamp, 12V / 50W. Imported Halogen Lamp, 6V / 20W. Japanese Hosobuchi make bulb, 6V × 30/33W, two-pin type with ribbon filament.
Eyepieces	One pair of imported Widefield Eyepieces WF10x. One pair of imported Widefield Eyepieces WF15x. Measuring Eyepiece 10x (Filar Micrometer Eyepiece), imported.
Stage & Eyepiece Micrometers	Stage Micrometer, 1 mm × 100 divisions, Japan make. Micrometer Disc Scale, 10 mm × 100 divisions. Graph Micrometer Disc, Japan make (100 or 400 square divisions).
Mechanical Stage for Polarising Microscopes	Mechanical stage for CENSICO Make Polarising Binocular and Trinocular Microscopes.

X

Transmitted & Incident Light Polarizing Microscope

A microscope for visualizing objects in transmitted ray as well as incident ray microscopy under polarized light. We have an expertise in manufacturing and exporting a versatile range of transmitted & incident light polarizing microscope which is an ideal equipment for diverse industrial applications. It is designed for the study & research in Mineralogy, Petrology, Crystallography and Geology. Provided with Binocular / Trinocular Head, Ergonomic location of coaxial coarse and fine motion. Provided with two Polarizers, Analyser Achromatic Strain free objectives Imported / Indigenous 5x, 10x & 40x, corrected for incident light and Two Paired Eyepieces WF10x (One Cross hair) and H15x, Built-in 6V 20W halogen lamp Illuminator with variable transformer built in the base.

Provided with iris diaphragm in the incident light illumination, Optional attachable mechanical stage and Accessory plates Mica quarter wave and Red Ist order, Quartz Wedge. A 35mm SLR or Digital camera can also be attached to the Trinocular Tube. It is available in three models that are Binocular Transmitted & Incident Light Polarizing Microscope, Trinocular Transmitted & Incident light Polarizing Microscope and Trinocular Transmitted & Incident light Polarizing Microscope with 35mm Camera & Digital Camera. A wide spectrum of Transmitted & Incident Light Polarizing Microscope manufactured by us are available at highly competitive prices.
